HOME > PRODUCTS > Special Trailers > 16 Tons Capacity Crane Truck

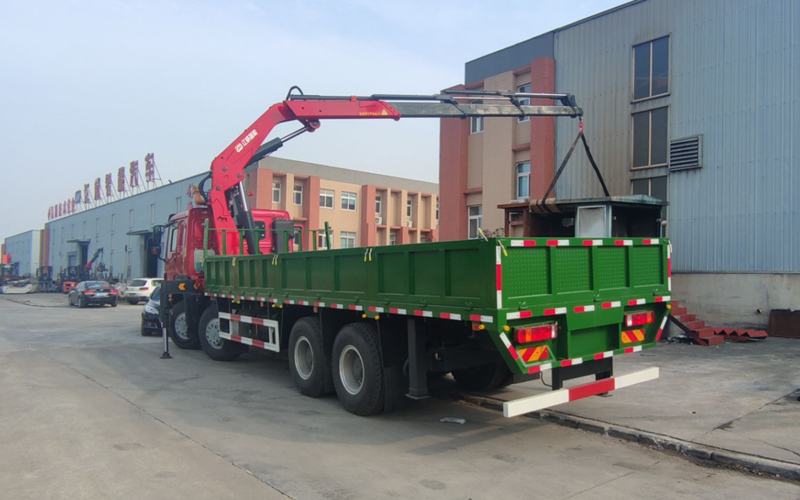

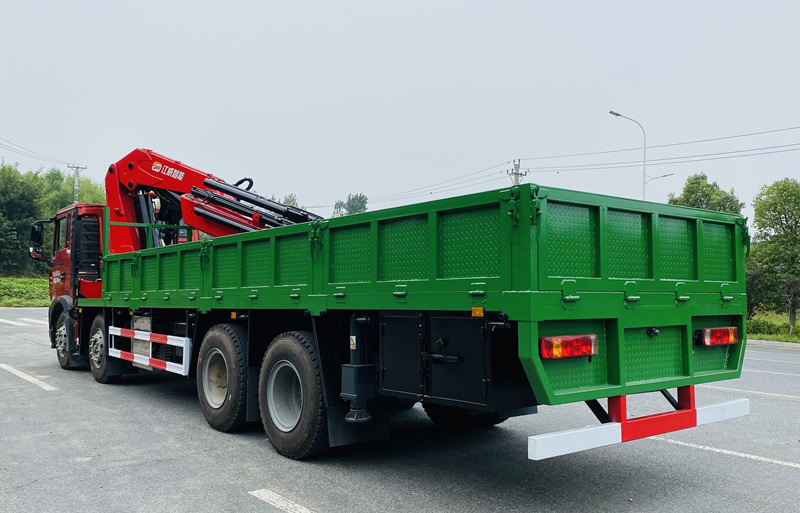

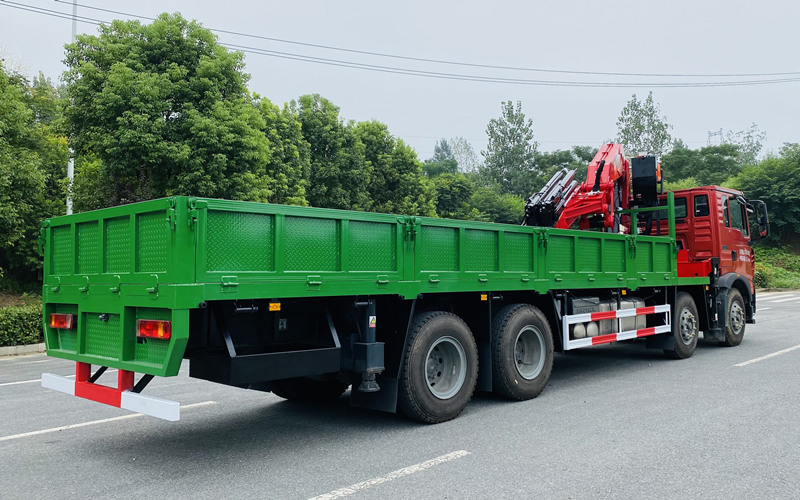

16 Tons Capacity Crane Truck
Truck mounted lifting and transportation vehicle is a kind of equipment that realizes the lifting rotation and hoisting of goods through hydraulic lifting and telescopic system. It is usually assembled on the truck.The advantages of truck mounted crane are good mobility and rapid transfer. It can integrate hoisting and transportation functions improve resource utilization and the price is much cheaper than truck mounted crane. Because of its flexible and multi-purpose characteristics it is favored by the market and has great market potential in the future.

16 Tons Capacity Crane Truck

Crane Truck / 16 Tons Capacity Crane Truck


DIMENSION:

12000*2650*3650mm (loading pan dimension:8000*2650*800mm)


TRUCK MODEL:

ZZ1317N4667W


CABIN:

HW76 Cab with sleeper / RHD

Air conditioner, stereo radio, adjustable steering column, driver's seat with hydraulic shock absorption,with fairing and side air deflector


ENGINE:
Model: WD615.47
Horse power: 371hp

Emission standard: EuroⅡ


GEARBOX:

HW19710,10 forwards & 2 reverse


FRONT AXLE:
HF9


REAR AXLE:
HC16


TWSIT LOCK:

4 sets twist locks can transport 1*20ft container


TIRE:
12.00R20 tires


WHEEL BASE:
Springs mechanical suspension with thicken leaf springs


TYRE:
1800+4600+1350mm


CRANE MODEL:

SQ320ZB4


MAX LIFTING TORQUE(KN.M):
320


MAX LIFTING CAPACITY:
16000KGS


MAX HYDRAULIC OUTREACH:
11200MM


CRANE WEIGHT:
4350KG


MAX LIFTING HEIGHT:
14500MM


LANDING GEAR SPAN:
2480-5630MM
