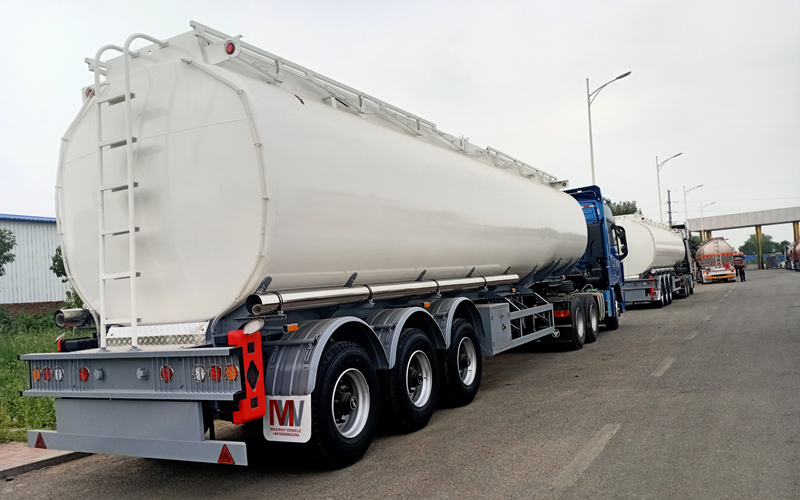

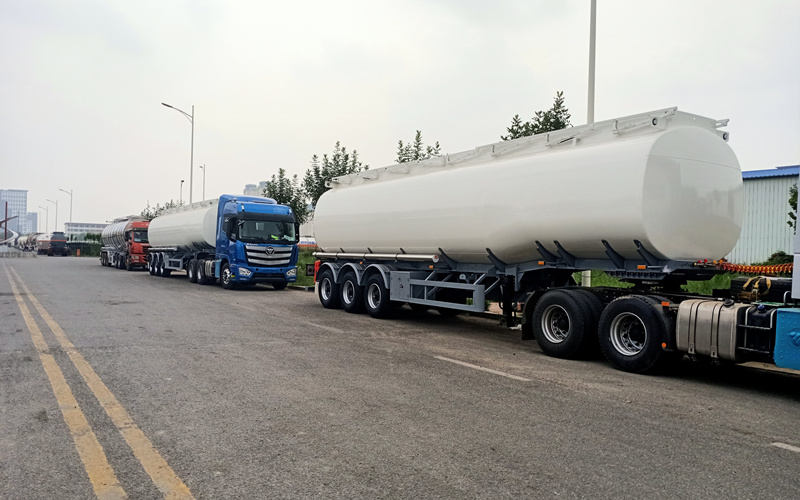

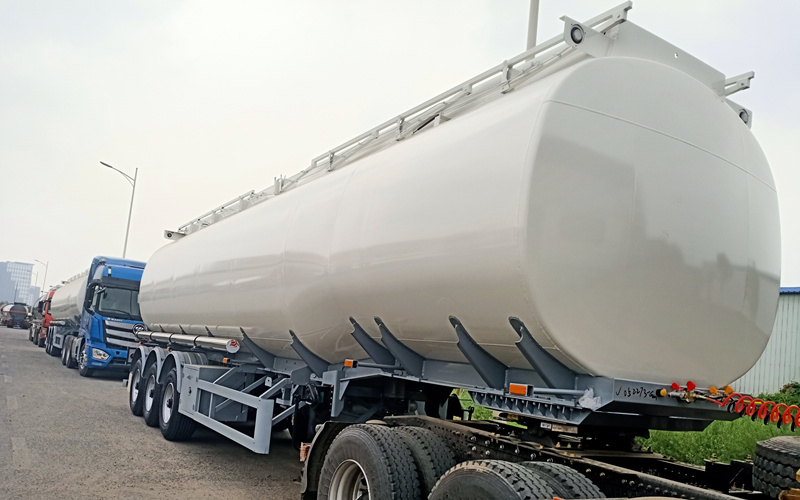

Petrol tanker / 48000 litres petrol tanker / diesel tanker / 3 axles aluminum diesel tanker

CAPACITY:

25000 – 55000 Liters capacity

CHASSIS AND STRUCTURE:

The chassis designed in accordance with the international transportation standards also available and prepared as having “I” section centre members are welded by submerged welding machine. They are welded between 120/12 mm bottom or top flat steel and 5 mm hub plate with high resistance to allow to obtain the highest efficiency under all road and weather conditions.

· Lenght 9500 mm – 13500 mm

· Width 2550 mm

· 2-3-4-5-6 Sections

· Bottle, Eliptical, Double ”D” Type, Round Shape types.

AXLES:
2-4 pcs Axles, each one is with 9-12-16 tons capacity according to the trailer drum or disc brakes, hub centric, with 10 wheel nuts, and automatic slack adjuster.

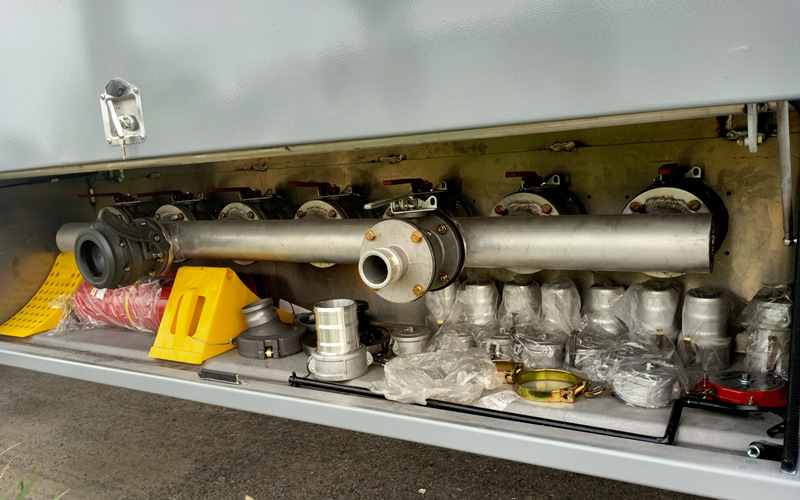

Discharging valve:
Euro standard 100mm discharging valve and VPI

Manhole:
Euro standard 500mm manhole with color

BRAKE SYSTEM:
The WABCO or Haldex brand ABS or EBS brake system which is designed according to the European Standards is used. It consists of automatic brake ratchets, brake valves and brake bellows of 30.

SUSPENSION SYSTEM:
It consists of automatic height adjusting system, Parabolic Z leaf springs, Suspension bellows, shock absorbers restricting extensive shaft movements and vibrations.

Mechanical leaf spring suspension system.

ELECTRIC SYSTEM:
12V / 24 V illumination systems in conformity with the international standards, lamp with 7 functions, and electric socket with 7 pins are used. There are traffic warning panels on the vehicles.

PARKING LEGS:
Consists of double cycle telescopic legs each of which has a capacity of 28 tons.

KING PIN:
King pin compliant with SEA/DIN norms and manufactured from steel (42 Cr Mo 4) which is highly resistant to being cut, stretched and broken off is of flange type and can be disassembled and assembled back.

TYRES AND WHEEL RIMS:
Tires 6 + 1 pieces of 385/65 R 22.5 sizes. Wheel Rims 6 + 1 piece 11.75 sizes or double wheel optional to the customer demand.

STANDARD ACCESSORIES:
Tool box, Water Retainer Mat, Spare tyre carrier, Wheel leaning mounting, Fire extinguisher preserving cabinet.

OPTIONAL FEATURES:
BPW, L1, FUWA Axle drum or disc axle can be preffered.

Chassis and tank group manufactured from high quality metal sheet .

Tank side can be Stainless Steel, Aluminum material.

Aluminum Rims.

Tire mark according to request.

PAINT:
The surfaces are cleaned under high pressure with water and bonder chemical liquid. Then it is dyed with one coat of epoxy die, and a last coat of acrylic die. It is very durable against chemical effectiveness. As desired, colours can be chosen from the RAL codes.
