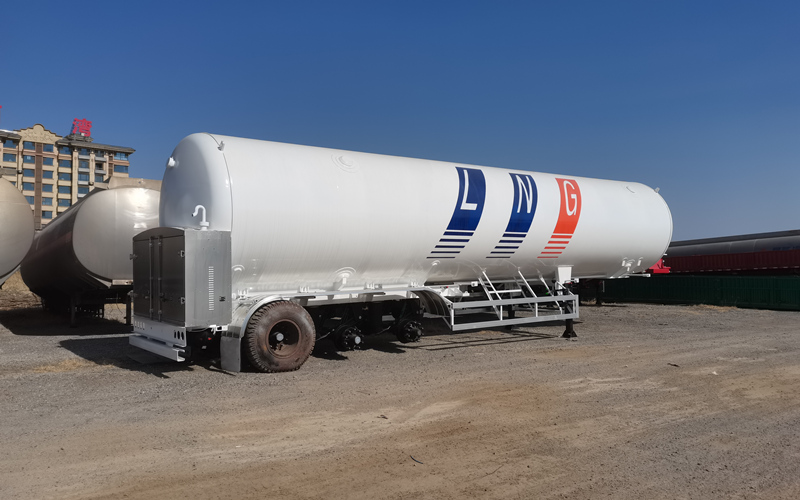

3 Axles 21 Tons LNG Tanker Transport Semi Trailer

LNG tanker called LNG trailer / LNG semi trailer / LNG truck trailer / LNG tanker trailer

Working in ultra-low temperature

During transportation the control of the pressure in the storage tank the extraction and processing of the vaporized gas and the refrigeration and cold preservation must be considered

In addition accessories such as safety valves liquid level gauges thermometers and expansion joints of inlet and outlet pipes of LNG storage tanks must also be resistant to low temperatures. The safety device of the storage tank must be able to start reliably even at low temperature and low pressure.

3 Axles 21 Tons LNG Tanker Transport Semi Trailer

CAPACITY:

52.6m3 capacity (approx 21 tons)


Dimension(L*W*H):
13000*2500*3990mm


Tanker:
Design pressure: 0.68Mpa

Design temperature: -196℃

Tanker body: S30408

End plate: 6mm (30408\Q345R)

Hydraulic test pressure: 0.9Mpa

Air tight test pressure: 0.68Mpa


AXLES:
13 tons (L1 / Fuwa / BPW or any other brand)


BRAKE SYSTEM:
The WABCO or Haldex brand ABS or EBS brake system which is designed according to the European standards is used. It consists of automatic brake ratchets, brake valves and brake bellows of 30.


SUSPENSION SYSTEM:

Springs suspension or air bag suspension optional


ELECTRIC SYSTEM:
24 V illumination systems in conformity with the international standards, lamp with 7 functions, and electric socket with 7 pins are used. There are traffic warning panels on the vehicles.


PARKING LEGS:
Consists of double cycle telescopic legs each of which has a capacity of 24 tons.


KING PIN:
Bolt-in 2.5 inches / 3 inches size


TYRES AND WHEEL RIMS:

Triangle brand 12R22.5 size double tires or 6 + 1 pieces of 385/65 R 22.5 sizes. Wheel Rims 6 + 1 pieces


STANDARD ACCESSORIES:
Water Retainer Mat, Spare tyre carrier, Wheel leaning mounting, Fire extinguisher preserving cabinet.


Rims:
9.0 size steel rims


PAINT:
The surfaces are cleaned under high pressure with water and bonder chemical liquid. Then it is dyed with one coat of epoxy die, and a last coat of acrylic die. It is very durable against chemical effectiveness. As desired, colours can be chosen from the RAL codes.
