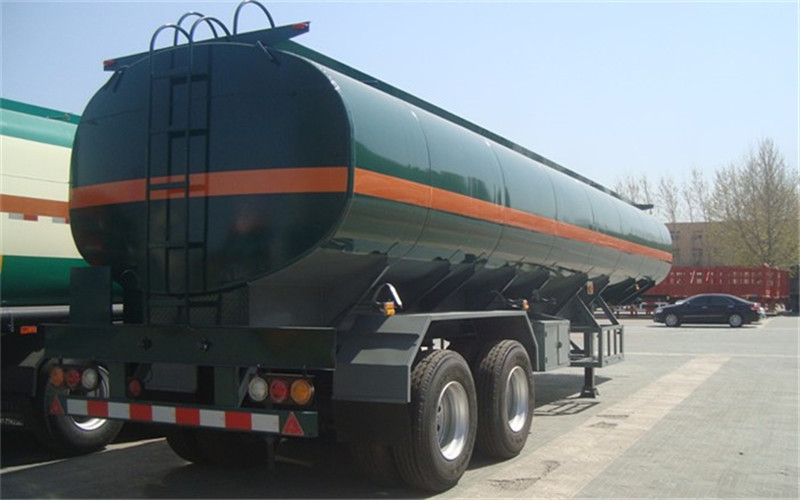

MAXWAYTrailer manufactures high quality Asphalt Tanker and bitumen tank trailer from China  to World. In our Asphalt Tanker/bitumen tank trailer we use heating system and we use isolation materials for outside of the boiler. With this trailer you can carry bitumen, hot aspahlt materials. MAXWAYTrailer can produce Asphalt Tanker between 20 Cbm to 70 Cbm.

CAPACITY:
22m3 – 50m3 capacities

CHASSIS AND STRUCTURE:
Mono Block chassis manufactured from ST Steel quality with welding machines.

· Lenght 8000 mm – 12000 mm

· Width 2550 mm

· Operation Pressure 2 Bar

· Test Pressure 2,5 Bar

AIR COMPRESSOR:
3 or 2 Headed Electrical compressor.

AXLES:
2-3 pcs Axles, each one is with 9-12-16 tons capacity according to the trailer drum or disc brakes, hub centric, with 10 wheel nuts, and automatic slack adjuster.

FRONT AXLE LIFTING:
Front shaft lifting system remote controlled from the driver’s seat.

BRAKE SYSTEM:
The WABCO or Haldex brand ABS or EBS brake system which is designed according to the European standards is used. It consists of automatic brake ratchets, brake valves and brake bellows of 30.

SUSPENSION SYSTEM:
It consists of automatic height adjusting system, Parabolic Z leaf springs, Suspension bellows, shock absorbers restricting extensive shaft movements and vibrations. Mechanical leaf spring suspension system.

ELECTRIC SYSTEM:

24 V illumination systems in conformity with the international standards, lamp with 7 functions, and electric socket with 7 pins are used. There are traffic warning panels on the vehicles.

PARKING LEGS:
Consists of double cycle telescopic legs each of which has a capacity of 24 tons.

KING PIN:
King pin compliant with SEA/DIN norms and manufactured from steel (42 Cr Mo 4) which is highly resistant to being cut, stretched and broken off is of flange type and can be disassembled and assembled back.

TYRES AND WHEEL RIMS:
Tires 6 + 1 pieces of 385/65 R 22.5 sizes. Wheel Rims 6 + 1 piece 11.75V22.5 sizes or double wheel optional to the customer demand.

STANDARD ACCESSORIES:
Water Retainer Mat, Spare tyre carrier, Wheel leaning mounting, Fire extinguisher preserving cabinet.

OPTIONAL FEATURES:
BPW, SAF, Gigant Axle drum or disc axle can be preffered. Chassis and tank group manufactured from imported metal sheet (Hardox or Domex). Aluminum Rims. Tire mark according to request. Deutz diesel engine.

PAINT:
The surfaces are cleaned under high pressure with water and bonder chemical liquid. Then it is dyed with one coat of epoxy die, and a last coat of acrylic die. It is very durable against chemical effectiveness. As desired, colours can be chosen from the RAL codes.
