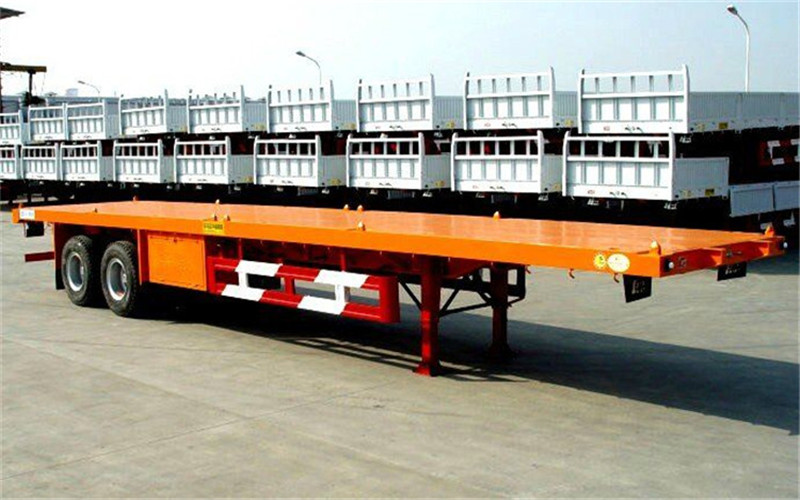

Container Flatbed Trailer offers a wide range of Flatbed Trailer which is used for carrying container. These Flatbed  Trailers can carry 20,30,40,45 feet container according to demand. We use maxiumum 12 pcs of high standard container locks. We also use long life trailer axles types and numbers according to load tonage for this Flatbed  Trailers.

Platform:

Container locks conforming to standard EU norms, extendable design allowing to carry 20, 30, 40 and 45 feet container.

Chassis:

Strengthened “I” section centre members are welded automatically by submerged welding machine. They are welded between 140/14 mm bottom or top steel plate and 5 mm hub plate.

Axles:

BPW, FUWA or local famous brand Axles brake drum or disc

There are brake shoes and heavy brake levers suitable for TSE norms

Suspensions ;

It is supplied with Turkish brand of 6 pcs of air cushion with Z leaf spring or mechanical leaf spring suspension with 12 mm x 12 pcs of layer with 100 mm width

Brake System ;

ABSbraking system will be used.

Brake Chambers ;

1 Axles with T 30/30 emergency brake chamber,2 axles with T 30 service brake chambers

Electrical System ;

2×7 pin sockets – 24V, lights accord to standard in SAE rear stop lamps, side marker lamps, brake safety warning lamps and signal light fitted at the rear

2 tail & stop combined lamps (red)

2 turn signal combined lamps (orange)

1 license lamp (white)

Tires;

–  11.00R20
–  12.00R20
–  11 R 22.5
–  12 R 22.5
–  315/60 R 22.5
–  385/60 R 22.5

King Pin ;

JOST,  FUWA or local famous brand king pin standards 2’’ or 3,5’’ king pin detachable from below made by SAE standards 8 bolt type.

Landing Gear ;

JOST,  FUWA or local famous brand parking leg and king pin brand front Jack feet are telescopic,parallel working,double speed jointed with wide shoes static 50 tons, dynamic 25 tons capacity

Painting ;

Before the painting trailer is sand blasted

ZincRich epoxy gray is used for first protecting.

1-2 Times of high quality paints are applied on trailer protects against humadity

The color of trailer is selected by our customer according to RAL codes
