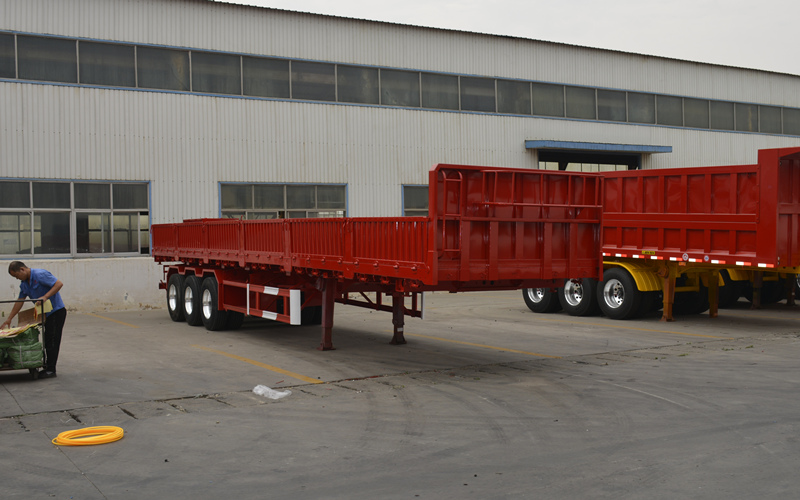

Bulk sides semi trailer / 30 tons 40 tons bulk sides semi trailer / Side wall cargo trailer / Tandem side wall cargo trailer

Payload

30-60 tons

Dimension

13000mm length / 2600mm width / 1600mm height

Chassis

Strengthened “I” section centre members are welded automatically by submerged welding machine. They are welded between 120/14 mm bottom or top steel plate and 5 mm hub plate.

500mm height main beam, top plate 14mm / middle plate 10mm / bottom plate 16mm

Platform

Platform material can be used MD or 3/4 chequred plate according to demand

Side boards

600mm height / 1000mm height / 1200mm height...removable type side boards

Axles

BPW, FUWA or local famous brand Axles

Suspensions

Springs suspension or air bag suspension optional

Brake System

ABS braking system will be used.

Brake Chambers

T30/30 emergency brake chamber,2 axles with T 30 service brake chambers

Electrical system ;

2×7 pin sockets – 24V, lights accord to standard in SAE rear stop lamps, side marker lamps, brake safety warning lamps and signal light fitted at the rear

2 tail & stop combined lamps (red)

2 turn signal combined lamps (orange)

1 license lamp (white)


Tires

Triangle brand 385/65 R22,5 or 12 R22,5 or 13 R22,5 or 315/80 R22,5

Rims

11.75R22.5 steel rims or 9.0 size steel rims

King Pin

JOST,  FUWA or local famous brand king pin standards 2’’ or 3,5’’ king pin detachable

Landing Gear

JOST,  FUWA or local famous brand Jack feet are telescopic,parallel working,double speed jointed with wide shoes static 50 tons, dynamic 25 tons capacity

Painting

Before the painting trailer is sand blasted, ZincRich epoxy gray is used for first protecting. 1-2 Times of high quality paints are applied on trailer protects against humadity The color of trailer is selected by our customer according to RAL codes.
